When should I choose a towable center pivot instead of a fixed one?

If you manage fragmented land holdings, lease farmland across multiple plots, or need to irrigate several fields with a single capital investment, towable pivots are almost certainly the smarter choice. A towable center pivot system mounts on a mobile chassis, allowing one machine to service multiple irrigation circles by relocating between fields using a standard tractor. When land tenure is uncertain or per-hectare installation costs must stay lean, mobility transforms a single asset into a versatile production tool rather than a permanently committed infrastructure expense.

Understanding Towable Center Pivots vs. Fixed Center Pivots

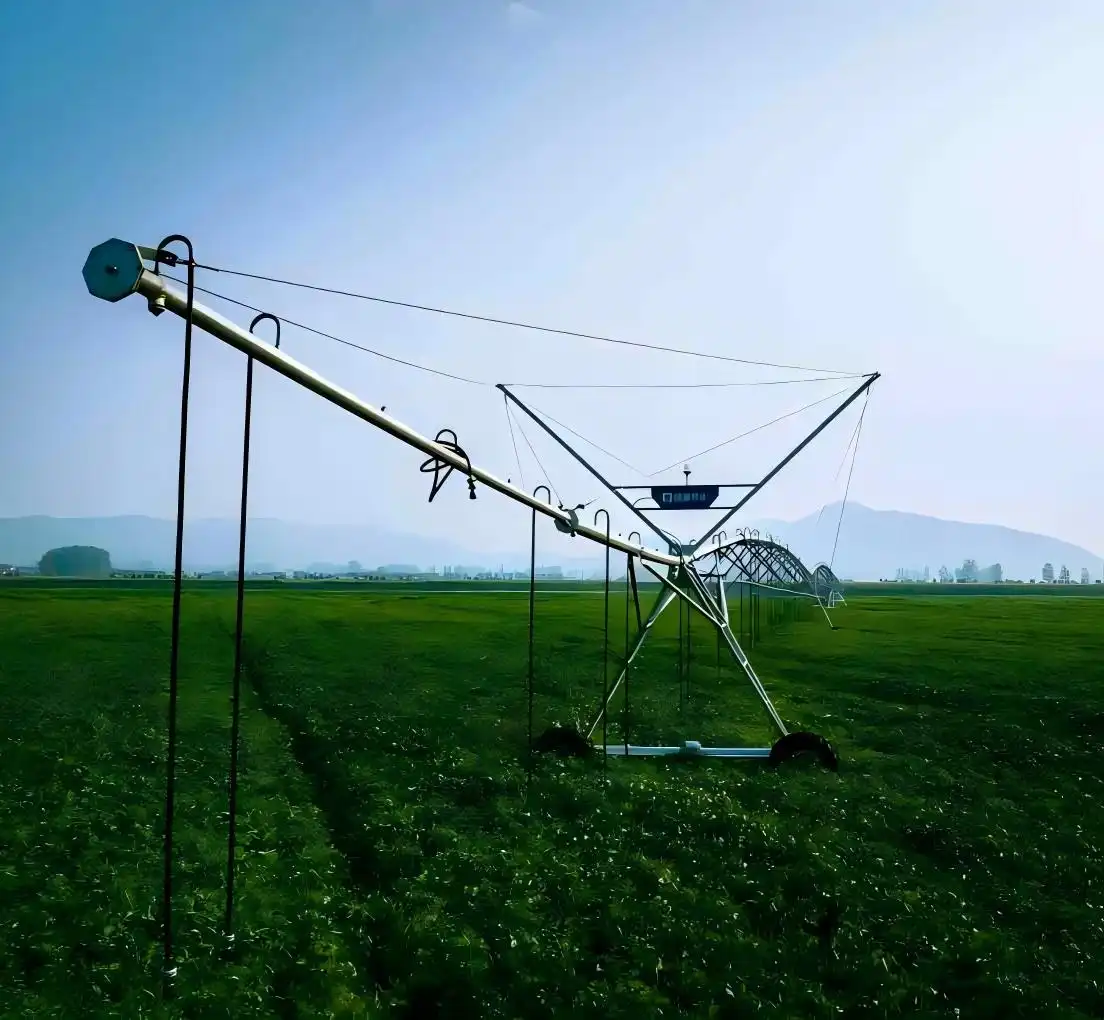

A fixed center pivot anchors permanently to a concrete pad with buried supply lines. It excels on large, contiguous plots where the land is owned outright and irrigation demand is consistent year-round. The tradeoff is obvious: once installed, it stays put.

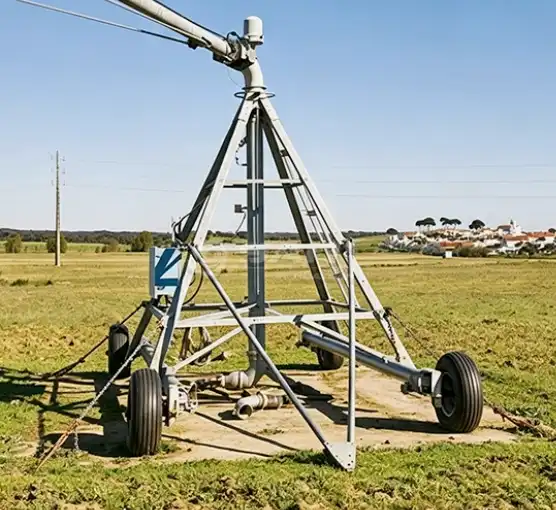

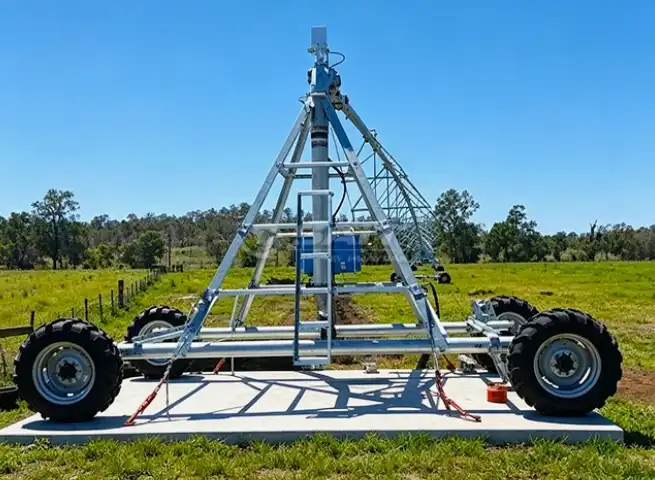

How a Towable Pivot Works Mechanically

A heavy-duty wheeled tower with hubs that can turn 90 degrees for transport holds a portable towable pivot system. An internal water-seal mechanism in the swivel pivot point keeps the hydraulic integrity while it works in a circle. A 60–100 HP tractor and two workers are needed for moving. The Four-Wheel Towable Irrigation System from HUAYUAN SAIT can extend to a length of 457 metres, and the Easy Towable Single-Span system can go up to 85 metres. Both can be moved in less than an hour.

In big, privately owned areas, fixed systems provide the most uniformity of any type. With a buried water and power supply, it doesn't take long to get up and running after the first installation. For farms that grow more than 500 hectares of row crops all the time on land that is permanently owned, the higher cost of the initial civil work is usually worth it because the labour cost per cycle is lower with a set pivot.

Core Decision Criteria: When to Choose Towable Over Fixed Center Pivots?

The decision rarely reduces to one variable. Procurement managers typically weigh land tenure, field geometry, capital budget, and operational staffing simultaneously.

Towable systems earn a decisive advantage under these conditions: the operator holds leased or seasonal land, fields are irregular or segmented below the economic threshold for a dedicated fixed pivot, or the project involves phased development where irrigation infrastructure must follow crop rotation rather than precede it.

Here are the core decision factors that consistently favor mobile towable pivots:

• Fragmented or leased land: Tenant farmers risk stranded investment if permanent infrastructure is tied to land they no longer control. A relocatable pivot moves with the operation. According to USDA Economic Research Service data, approximately 39% of U.S. farmland is rented, making asset portability commercially significant.
• Multi-crop rotational management: A single Four-Wheel Towable unit can irrigate three adjacent 40-hectare circles sequentially, delivering precise moisture at different growth stages for corn, soy, or wheat without duplicating capital expenditure.
• Irregular field geometry: HUAYUAN SAIT's towable range accommodates span lengths from 37.5 m to 66.5 m with overhang options up to 25 meters, enabling coverage of non-rectangular plots where fixed pivot coverage becomes geometrically wasteful.
• Off-grid or remote sites: Flexible power supply options — grid power, diesel generator, or photovoltaic system — mean a mobile pivot operates wherever water is available, eliminating the need for permanent electrical infrastructure.

These factors collectively reduce total cost of ownership relative to deploying multiple fixed systems. The cost-per-hectare irrigated drops measurably when one machine covers ground previously requiring two installations.

Comparing Towable Center Pivots with Other Irrigation Systems

No single technology dominates every scenario, and a credible procurement decision requires honest benchmarking.

Linear move systems cover rectangular fields efficiently but demand level terrain and continuous lateral water supply infrastructure. Drip irrigation achieves high application efficiency on high-value crops but carries significant per-hectare installation cost and intensive maintenance requirements for filters and emitters. Wheel line systems remain common on smaller operations but require manual repositioning and deliver lower uniformity coefficients.

On irregular or non-rectangular fields, a center pivot towable maintains circular coverage geometry that a linear move cannot replicate without costly field reshaping. HUAYUAN SAIT's BeiDou-integrated control achieves irrigation uniformity above 90% and a missed-irrigation rate below 5%, benchmarks that linear systems struggle to match on complex terrain.

Drip systems typically run $1,500–$3,000 per hectare installed. A towable pivot, amortized across three fields it services regularly, cuts the effective per-hectare equipment cost substantially. For row crops like corn and cotton where canopy management tolerates overhead application, the operational simplicity of a mobile pivot carries measurable labor savings over a season.

Installation, Maintenance, and Troubleshooting of Towable Pivots

Commissioning a towable pivot is less civil-work-intensive than a fixed installation. There is no concrete anchor pad or buried main line — the pivot point connects to a portable water supply riser, and the machine is operational within hours of arrival on site.

Maintenance Priorities That Protect Long-Term Investment

HUAYUAN SAIT's hot-dip galvanized steel construction exceeds 80 μm zinc coating thickness, outperforming standard galvanized components in corrosion resistance across tropical, arid, and temperate climates. The company's self-developed water turbine 4-speed gearbox uses specially formulated wear-resistant gears engineered for the torsional stress of frequent field-to-field transitions. Routine inspection should prioritize wheel hub alignment locks, tow-hitch weld integrity, and swivel seal hydraulic pressure — all of which are covered under HUAYUAN SAIT's 1-year full warranty and 3-year low-cost maintenance program.

For a center pivot towable, available pipe diameters — 127 mm, 168 mm, and 219 mm — allow the sprinkler package to be matched precisely to available water supply pressure, reducing energy consumption per hectare irrigated.

Case Studies & Practical Applications: Successful Use of Towable Center Pivots

Instead of five fixed pivots, a commercial corn and soybean operation that was in charge of five leased parcels covering 800 hectares used two Four-Wheel towable pivots. A lot of money was saved, and because the leases were set up on three-year terms, the mobile assets moved easily from plot to plot as tenants changed. When HUAYUAN SAIT's SAIT smart control system with remote tracking was used, uniformity of irrigation stayed above 90% at all sites.

In East Africa, places that aren't connected to the grid have been given diesel-powered mobile pivots by the government for food security projects on state farms where grid facilities won't be ready for years. With an 85-meter reach and pipe diameter options of 127 mm or 168 mm, the Easy Towable Single-Span system is a low-barrier way to start pilot programmes before full-scale fixed infrastructure is needed because of proven yield outcomes.

Conclusion

Choosing between a towable pivot and a fixed system ultimately comes down to land permanence, field geometry, and how far one machine's coverage needs to stretch across your operation. Towable center pivots deliver compelling economics on leased, fragmented, or developing agricultural land. Fixed systems remain the efficient choice for large, permanently held, contiguous plots. For most operations balancing capital discipline with irrigation coverage demands, towable pivots earn their keep across multiple seasons and multiple fields.

FAQ

Q1: How long does relocation actually take in field conditions?

A standard multi-span towable pivot requires two operators and a 60–100 HP tractor. Under typical field conditions, relocation between adjacent plots takes under one hour. HUAYUAN SAIT's design allows repositioning in under 30 minutes for shorter configurations.

Q2: What pipe diameters are available?

HUAYUAN SAIT's Four-Wheel Towable systems use 127 mm, 168 mm, and 219 mm main pipe diameters. The Single-Span system uses 127 mm and 168 mm options, matching supply pressure to field area requirements.

Q3: Can the control system integrate with third-party farm management platforms?

Yes. The SAIT electronic control system supports both standard and remote-control configurations and can integrate with third-party SCADA platforms. BeiDou navigation is embedded for precision alignment and coverage monitoring.

Q4: What power supply options are available for off-grid deployment?

Grid power, onboard diesel generator, and photovoltaic system options are all available, making these systems viable for remote or developing agricultural regions.

Request a Towable Pivot Quote from HUAYUAN SAIT

HUAYUAN SAIT is a trusted towable pivots manufacturer with 20 years of production experience, 130+ patents, and annual capacity for 1,800 pivot systems. Whether you need a pilot unit or a multi-system project order, our engineering team provides on-site installation support, OEM customization, and lifelong spare parts supply. Contact us directly at kevin@showyirrigation.com to request a configuration quote tailored to your field conditions.

References

1. USDA Economic Research Service. Farmland Ownership and Tenure. 2022.

2. American Society of Agricultural and Biological Engineers. ASABE Standard S436.1: Test Procedure for Determining the Uniformity of Water Distribution of Center Pivot and Lateral Move Irrigation Machines. 2018.

3. Food and Agriculture Organization of the United Nations. Irrigation Water Management: Irrigation Methods. FAO Irrigation and Drainage Paper No. 45. 1988.

4. Camp, C.R., Sadler, E.J., & Busscher, W.J. A Comparison of Uniformity Measures for Drip Irrigation Systems. Transactions of the ASAE. 1997.

5. Lyle, W.M., & Bordovsky, J.P. LEPA Corn Irrigation with Limited Water Supplies. Transactions of the ASABE. 1995.

6. Evans, R.G., & King, B.A. Site-Specific Sprinkler Irrigation in a Water-Limited Future. Transactions of the ASABE. 2012.
