How to install center pivot irrigation

Installing a center pivot irrigation system correctly determines whether a 500-hectare corn operation achieves uniform stand emergence or loses yield to dry pockets. Pivot irrigation works by rotating a pipeline supported on wheeled towers around a fixed central point, delivering water and nutrients in a precise circular pattern. A single HUAYUAN SAIT unit covers 4 to 200 hectares per cycle, saves over 70% more water than flood irrigation, and operates autonomously through the SAIT Smart Control System. Getting the installation right from day one protects that investment for 20 years or more.

Understanding Center Pivot Irrigation Systems

How the System Works

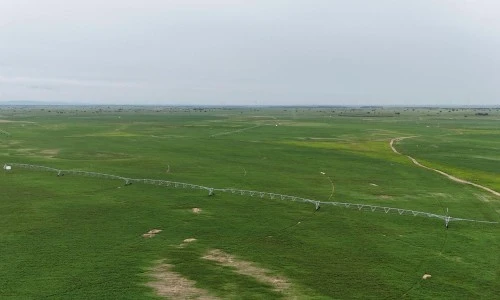

A center pivot machine has a fixed pivot point that is linked to a water source, several self-moving tower units, a continuous overhead pipeline, and a sprinkler package that is set up to evenly deliver water from the inner span to the outer end gun. Electric motors with ratios of 25.5:1 (1.5 hp) or 40:1 (0.75 hp) power each tower. Torque is sent to the ground wheels by wheel gears with ratios of 50:1 or 52:1. The nozzle hole size grows with the radius because the outer spans travel a longer distance per turn. This keeps the Coefficient of Uniformity consistently above 90%.

HUAYUAN SAIT systems are made from hot-dip galvanized steel that has a zinc layer that is at least 80 µm thick. This makes them last longer than regular galvanized parts and gives them a service life of more than 20 years. Span heights of 2.1 m, 2.9 m, 3.8 m, and 4.5 m can handle a wide range of crops, from low-profile soybeans to high-clearance sugarcane. Pipe diameters of 5" (127 mm), 6-5/8" (168 mm), and 8-5/8" (219 mm) meet flow needs across field sizes, and span lengths range from 37.5 m to 66.5 m, depending on the shape of the field and the rate of application that is wanted.

Preparing for Installation: Key Considerations and Site Assessment

Site Analysis Comes Before Any Earthwork

Most large-scale sprinkler commissioning failures can be avoided by proper preparation. The engineering team has to look at how fast the dirt soaks up water, the slope of the land, the volume of the water source, and any local rules and regulations before they can move any equipment. HUAYUAN SAIT's SAIT precision control system changes application rates based on data from measuring soil infiltration. However, the site conditions must still be accurately mapped out before the system can be used.

Here are the most important things that every procurement team should check before installation:

• Topographic survey and field boundary mapping: Check to see if the field can be laid out in a normal circle or if a Corner Arm extension is needed. The HUAYUAN SAIT Corner Arm system extends irrigation into square or oddly shaped corners. This can water up to 15% more land than a normal circular sweep. With BeiDou navigation guidance, the arm retracts correctly, and missed-irrigation rates stay below 5%.
• Water source and pressure audit: At the pivot intake, the pump station must maintain the original flow rate. Different span configurations have different pressure needs. The SAIT engineering team does hydraulic estimates that are based on the chosen pipeline diameter and nozzle package.
• Power supply verification: HUAYUAN SAIT systems work with the standard 3-phase power setups used in commercial farming in North America. All tower wiring uses armored cable that is listed by UL, and control screens have lightning arresters and phase-monitoring switches to protect against changes in the country grid.
• Regulatory and compliance review: In the US, installing pivots near lakes or rivers might need to be reviewed by the USDA NRCS. Benchmarks for component quality are set by ISO 9001 and ASABE standards.

When these checkpoints are dealt with in a planned way, most expensive mid-project redesigns are avoided.

Step-by-Step Guide to Installing Center Pivot Irrigation

Building from the Center Outward

The installation always starts at the center point and works its way out to the outer end tower. The steps below are standard in the industry and are in line with HUAYUAN SAIT's on-site technical supervision protocol.

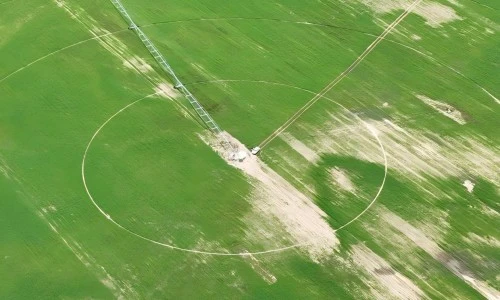

Anchor and assemble the pivot point. The anchor base or concrete pad must be level and placed at the field center that has been confirmed by GPS. The pivot outlet is connected to the stream by a swivel joint, which lets the pivot rotate in a circle of 360 degrees without stopping the hydraulics.

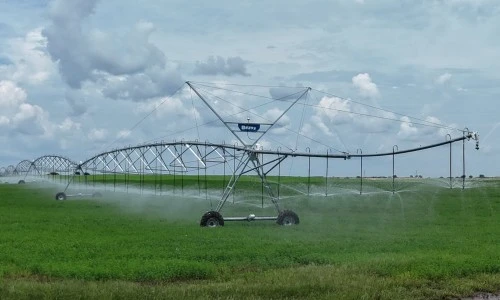

Erect the first tower and align the drivetrain. Tower legs attach to anchor plates that are already in place. Engineered angle bracing and truss rod diameters of 20 mm or 22 mm spread span loads evenly across each tower pair. Accurate alignment here keeps the pipeline from bowing when it turns, which is a common cause of early joint wear.

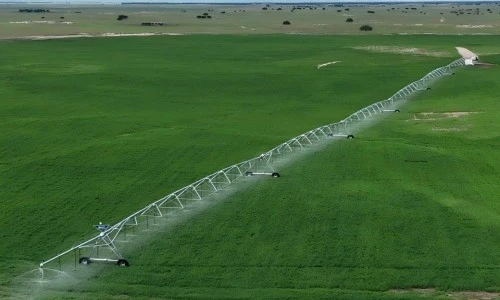

Assemble successive spans outward. Each part of the pipeline connects to the one before it using the set overhang length, which can be anywhere from 2.7 m to 25 m based on the layout. Before the pipe is put into the saddle mounts, the sprinkler plan drawing is checked to make sure that the outlet spacing is 1.9 m or 2.9 m.

Install the sprinkler package. The size of the nozzles should match the hydraulic design output. HUAYUAN SAIT has different types of spray heads, including low-pressure rotator, fixed-plate, and impact-type heads, that can be used depending on the crop canopy height and soil texture.

For pivot irrigation, connect the SAIT control system and run pre-commissioning checks. The control panel allows for management of variable-rate irrigation zones, scheduling of watering, and tracking from afar. Before the first wet run, technicians check the direction of the motor's spin, the tuning of the tower alignment sensor, and the end-gun's activation radius.

A full-rotation catch-can test is part of the initial calibration to make sure that the real Distribution Uniformity fits the design standard. If the difference is more than ±5%, the nozzles must be replaced, or the pressure control must be adjusted before the system can be used for real.

Maintaining Your Center Pivot Irrigation System for Long-Term Efficiency

Routine Maintenance Protects a 20-Year Asset

A regular inspection schedule is the first step to making mechanical systems reliable. It is suggested that the oil in a gearbox be changed every 1,000 hours of use. If this is done, the planetary gearmotors on HUAYUAN SAIT towers should last for 10,000 hours or more. Before each busy irrigation season, all pivot joints and drive couplings need to be greased. During active operation, the filter housings at the pivot inlet need to be cleaned once a month to keep the pressure across the nozzle package from dropping.

Electrical panel technicians should check the terminal torque, the integrity of the cable sheathing, and the relay contacts once a year. The protected UL-listed cable standard can handle wear and tear from field machinery, but it's still a good idea to check the cables physically after harvesting and tilling.

Because HUAYUAN SAIT stands behind their products after the sale, workers don't have to worry about much of the upkeep. There is a 1-year guarantee that covers all defects in the parts, then 3 years of low-cost maintenance and part replacement, and for the life of the machine, spare parts are provided at the factory cost price. Compared to rival names, that structure lowers the total cost of ownership by a large amount.



Cost and Procurement Insights for Center Pivot Irrigation Systems

Evaluating Total Ownership Cost, Not Just Unit Price

A large-scale sprinkler center pivot purchase decision takes into account the cost of the machine itself, the labor needed to set it up, the energy it will use, and the chance of it breaking down over the next 20 years. Costs per unit for business systems in North America run from $50,000 to $200,000, based on the system's radius, amount of automation, and sprinkler package. The direct-factory supply model used by HUAYUAN SAIT doesn't add a markup for distributors, so procurement managers get a lower landing cost than with Valley, Lindsay, or Reinke alternatives.

The wait time for delivery is a key factor in planning the schedule for a project. HUAYUAN SAIT ships from a logistics hub close to Xuzhou, which is one of China's main multimodal freight hubs. This cuts down on normal export wait times by a large amount. Standard configurations can be sent out within a week of the order being confirmed, which is well within the 60–90-day window that most project schedules need. Engineers can finish OEM and ODM orders in 30 to 45 days, even if they need custom branding, language localization for the control panel, or non-standard span configurations.

Conclusion

How well a center pivot system works for decades depends on how well it was installed, from the site survey to the calibration. In HUAYUAN SAIT, structural sturdiness, SAIT smart automation, BeiDou-guided corner coverage, and direct-factory prices are all combined into a single purchasing option that beats the competition in terms of total cost of ownership. This article walks you through a step-by-step process that works whether you are ordering a first test unit or building infrastructure for a state farm. The best way to protect long-term yield and water use economy is to spend money on good planning during installation, especially when considering pivot irrigation.

FAQ

Q1: How long does a standard center pivot installation take?

A trained crew can usually install a single unit in 3 to 7 days, but this depends on how well the field is prepared, how many spans there are, and how complicated the power connections are. HUAYUAN SAIT oversees installations on-site to make sure that schedules are kept.

Q2: What maintenance does a pivot system require annually?

Gearbox oil changes, joint greasing, filter cleaning, nozzle check, and electrical panel review are all things that need to be done once a year. HUAYUAN SAIT's low-cost repair program lasts for three years and covers parts and work at special prices.

Q3: Can the system operate on sloped or uneven terrain?

The system can work on fields with hills and valleys like those in the Midwest and Great Plains of the United States because the tower legs have universal joints that let them bend up to 15 degrees vertically.

Q4: How does the Corner Arm handle irregular field boundaries?

The BeiDou-guided Corner Arm moves out and back automatically as the machine turns, reaching spots that a regular circle sweep would miss. Based on field border data, missed-irrigation rates are still less than 5%.

Request a Custom Configuration from HUAYUAN SAIT

HUAYUAN SAIT makes precision pivot irrigation systems that are designed for large-scale businesses in North America and other places. We've been making machines for 20 years, have more than 130 patents, and hot-dip galvanize every structural member 80 times. This makes our machines last longer than the competition. Our team can set up span lengths, tower heights, and control systems to fit your field's exact needs, whether you need a single trial unit or a 20-unit project package from a reliable pivot irrigation maker. To get a detailed plan, email us at kevin@showyirrigation.com.
