How to maintain double swing linear irrigation arms?

Proper maintenance of double swing linear irrigation arms directly determines how long your system operates at peak efficiency. A double swing linear irrigation setup travels in a straight line perpendicular to the equipment structure, covering rectangular fields at a utilization rate exceeding 98%. With maximum machine lengths reaching 973 meters and travel distances up to 3,000 meters per unit irrigating up to 240 hectares, the mechanical load on swing joints, drive units, and guidance components is substantial. Consistent upkeep prevents costly breakdowns during critical crop growth windows and protects your capital investment across seasons.

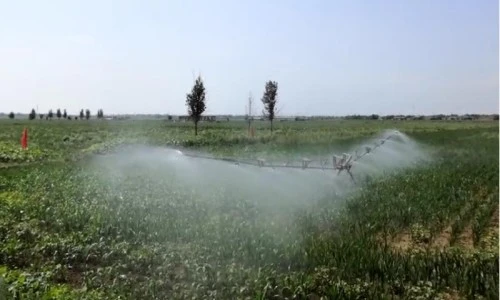

Understanding Double Swing Linear Irrigation Arms and Common Maintenance Challenges

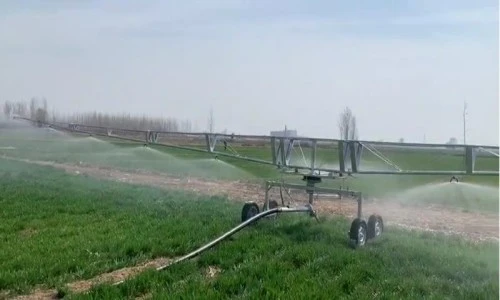

A lateral move irrigation arm has several spans that are connected to each other. It comes in different lengths (37.5m, 43.3m, 49.1m, and 54.9m) and is held up by drive towers that move across the field. Because it has two swings, the whole span can turn 180 degrees at the field ends, getting rid of dead corners without having to be moved by hand.

Mechanical Wear at Pivot Joints

The swing hinge is the part of the system that is repeatedly stressed the most. Each 180-degree change cycles joints that are under torsional load. Without regular lubrication, joint wear speeds up and alignment shifts, which leads to misaligned spans and structural fatigue in just two to three seasons.

Guidance System Drift

The accuracy of your calibration decreases over time, no matter what kind of guidance system you use (furrow, cable, or BDS/GPS dual-mode satellite). Tracking variation can be caused by soil movement, wire corrosion, and sensor contamination. A 2019 study in the journal Agricultural Water Management showed that guide drift above 3 cm makes wheel-rut damage and uneven water application much worse.

Corrosion and Material Degradation

For two-arm swing linear systems, structural steel is damaged by being outside for a long time and being exposed to water, fertilizers, and rough soils. The hot-dip galvanized coating on HUAYUAN SAIT is more than 80μm thick, which is much thicker than normal coatings. However, surface inspection is still an important part of any maintenance plan.

Step-by-Step Guide to Maintaining Double Swing Linear Irrigation Arms

Maintenance that is planned out starts before troubles show up. Here is an organized method that has worked well for field workers on big rectangular farms and government irrigation projects.

Pre-Season Inspection Checklist

Walk the whole length of the span and check all of the drive tower wheels before the first watering run. Check the tire pressure on wheels that are 11.2-24, 14.9-24, or 16.9-24 inches in diameter. Both tubeless and tubed tires lose pressure over the winter. Check for cracks and leaks in the main pipeline, which can have a width of 168mm or 219mm. Check that all the electrical connections in the control panel are dry and free of rust.

Lubrication Schedule for Swing Components

Grease all the pivot joint fittings with high-pressure oil every 150 hours of use or at the start of each season, whichever comes first. When changing directions, the main swing cart and the center cart position (whether it's in an end-part or center layout) carry the most weight. Distributors in charge of multi-unit projects say that ignoring these points is the most common reason why joints fail before they should.

Guidance and Drive System Calibration

Run a short calibration pass with the guiding system on after re-greasing. For systems that use cables, check the tension of the cables and look for corrosion at the ends of the cables. For BDS/GPS satellite navigation systems, check the signal lock time and make sure the machine's path matches the set field boundary. Alignment should be within 2.5 cm of the track that is meant to be used.

Breakdowns in the middle of the season have been reduced by these steps when they are consistently followed. Contract farming businesses that use relocatable lateral move systems say that just calibrating them before the season starts cuts the number of reactive repair calls by more than 40% during the growing season.

Optimizing Lateral Move Irrigation Efficiency Through Preventative Maintenance

It's not enough to just avoid failures; you also need to keep up the performance levels that make your investment in a swing-around linear system worth it.

Water Pressure and Nozzle Uniformity

For double swing linear irrigation, check the wear on fountain heads at least twice a season. When nozzles get worn out, they make the flow rate less stable, which lowers the coefficient of uniformity below the 90% level that HUAYUAN SAIT systems are designed to keep. It doesn't cost nearly as much to replace nozzle inserts as it does to fix the uneven application that wastes water and crops across a 240-hectare irrigation block.

Remote Monitoring Integration

Modern remote control systems have multiple interfaces that let workers see the speed of the drive tower, the flow of water, and the state of the guidance system all at once. When you connect your lateral move system to IoT-enabled tracking, you don't have to check it every day. Alerts that show real-time pressure, for instance, can spot clogged filters before they damage the pump or make the dry-run nozzle stop working.

Seasonal Storage Procedures

At the end of the season, drain all sections of the pipeline completely, especially in places where it gets below -20°C. HUAYUAN SAIT equipment can work in temperatures ranging from -20°C to 60°C, but when the pipeline freezes, water that stays there causes pressure inside that breaks fittings and welds. Make sure the generator or towed cord power source is kept in a dry, well-ventilated area.

Comparing Maintenance Requirements: Double Swing Linear vs. Other Irrigation Systems

Having a good idea of where dual swing lateral systems stand in relation to center pivot and standard linear move systems helps procurement managers make good budgets for maintenance.

Center Pivot vs. Lateral Move Maintenance

Center pivot systems have a fixed anchor point and fewer guidance components, which makes regular inspection easier. However, 10–15% of the sides of rectangular fields are not watered. This is a big loss for row crop businesses that grow sugar beets, potatoes, and vegetables. Even though the lateral move method is more complicated at first, its 98%+ area coverage rate and lack of fixed tower foundations make up for it.

Standard Linear vs. Double Swing Maintenance Intervals

The usual two-wheel linear move and the swing-around type have most of the same upkeep needs. For the double swing configuration, the extra maintenance is mostly for the swing pivot assembly and the PLC controller's end-of-field transition logic. The swing-limit switch should be checked once a year, and the main difference between this system and normal lateral types is the swing joint stress.

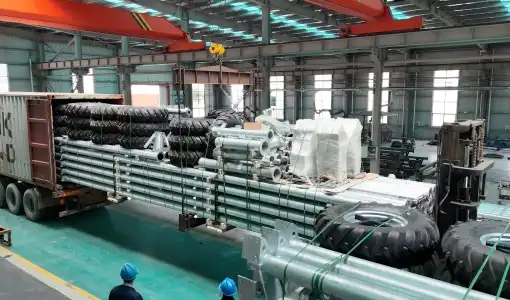

Parts Availability and Standardization

For two-arm swing linear equipment, HUAYUAN SAIT sells replacement parts at the original cost price for as long as the equipment works. The supply chain for parts is tightly controlled by more than 130 patents, including 35 invention patents and a unique water turbine 4-speed gearbox with wear-resistant gear formulation. This is important for government irrigation agencies and farming groups that need to know for sure that parts will be available for 10–15 years.

Selecting Expert Service Providers and Procuring Quality Maintenance Parts

Getting parts and service from authorized channels protects both the performance of the system and the warranty coverage.

Evaluating OEM Parts vs. Aftermarket Substitutes

OEM-certified parts are the same size and shape as the original parts in drive units, gears, and control systems. Aftermarket replacements for swing joint bearings and drive wheel hubs often have differences in size that make nearby parts wear out faster. When operators are in charge of 3–10 unit projects spread out over neighboring rectangular parcels, using OEM parts lowers the number of SKUs that need to be kept in stock.

In-House vs. Contracted Maintenance Teams

Large-scale workers who have their own mechanics can do simple guide correction, nozzle replacement, and lubrication on their own after getting the right training. Technicians who have been trained by the workplace are better at doing difficult jobs like overhauling gearboxes, reprogramming GNSS guidance, or fixing cracks in structures. HUAYUAN SAIT offers on-site installation supervision and operator training in the buyer's language. Each unit comes with a 1-year full warranty and a 3-year low-cost maintenance program.

Conclusion

To keep double swing linear irrigation arms in good shape, you need to keep the pivot joints oiled, the guidance calibrated, the nozzles equal, and the arms protected from rust. Systems made for rectangular fields that cover up to 240 hectares need regular maintenance to keep working at 98% or higher coverage levels through all four seasons. Implementing proactive inspection plans, using OEM-approved parts, and connecting to online tracking tools can lower costs and make equipment last longer. A planned repair program is the best way for procurement managers and field engineers to make sure that the full value of an investment in lateral move irrigation is maintained.

FAQ

Q1: How often should I grease the swing pivot joints?

Apply grease every 150 operating hours or at the start of each irrigation season. In high-cycle operations where the machine completes multiple 180-degree transitions per day, increase the interval to every 100 hours.

Q2: What causes guidance drift in cable-guided systems?

Cable corrosion, soil shifting near the cable trench, and terminal connection oxidation are the primary causes. Inspect cable tension and connection points at the start and midpoint of each season.

Q3: Can the remote control system flag maintenance alerts automatically?

Yes. The remote control system configuration monitors drive speed, water pressure, and alignment data in real time. Operators receive alerts when parameters fall outside set thresholds, allowing early intervention before mechanical failure.

Q4: What is the recommended maintenance difference for diesel generator versus towed cable power systems?

Diesel generator power units require additional checks: fuel filter replacement every 250 hours, oil change per engine manufacturer schedule, and air filter inspection monthly during dusty field conditions. Towed cable systems require inspection of cable insulation and connector seals each season.

Partner With HUAYUAN SAIT for Your Double Swing Linear Irrigation Needs

When HUAYUAN SAIT works as a double swing linear irrigation supplier, they bring 20 years of experience making things and more than 130 patents to the table. Their systems offer 98%+ field coverage, dual-mode BDS/GPS guidance, and full OEM customization. They also come with a 1-year guarantee, a 3-year low-cost service plan, and factory-priced parts for life. Get in touch with us right away to talk about your field requirements and get a price on the project.
