RENEW your irrigation with a Towable Pivot

Renewing your irrigation strategy starts with understanding what a towable pivot actually delivers. A towable pivot is a mobile center pivot system mounted on a relocatable chassis, engineered to serve multiple fields with a single machine. Unlike permanent fixed installations, these systems can be towed by a standard tractor and repositioned across your operation in under an hour. For large-scale commercial farms, government procurement programs, and EPC contractors managing fragmented land portfolios, this technology directly reduces per-hectare capital expenditure while maintaining irrigation uniformity above 90%.

Understanding Towable Pivot Irrigation Systems

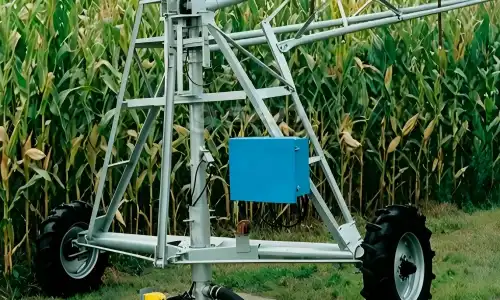

A towable pivot works the same way as a regular center pivot in terms of hydraulic movement, but its base structure is very different. The pivot point is on a mobile hub unit with heavy-duty wheels, which can have either four or two wheels. These wheels allow the whole span to spin while it's in use and lock at 90 degrees for transporting it side to side. A sealed swivel joint lets water in and maintains hydraulic integrity during both rotation and movement cycles.

How the Mechanical Design Enables Mobility

The swivel pivot point has a water-sealing system built in that stops leaks when it's being moved. Drive units and axles are strengthened to handle the twisting stress that comes from switching from one field to another many times. This company's special four-speed water turbine gearbox has specially made gears that don't wear out as quickly. These gears keep the speed more consistent than other options, which increases the machine's life and lets it spray farther at the same recovery speed.

Key Product Configurations Available

HUAYUAN SAIT has two main types of portable pivot systems. With major pipe sizes of 127mm, 168mm, and 219mm, the Four-Wheel Towable Irrigation System can go as long as 457 meters. With pipe sizes of 127mm and 168mm, the Easy Towable Single-Span Irrigation System can water an area up to 85 meters long. Both types have span lengths that can be anywhere from 37.5m to 66.5m, and overhangs that can be anywhere from 2.7m to 25m. There are tubed and tubeless versions of wheels in sizes 11.2-24, 14.9-24, and 16.9-24. Power supply modes include grid power, diesel generators, and photovoltaic systems. This gives operators real flexibility, no matter what kind of infrastructure is available.

Comparing Towable Pivots with Other Irrigation Solutions

The best way to water a field relies on its shape, the type of crop being grown, the supply of labor, and the total cost of ownership over 10 to 20 years. Drip irrigation is a precise way to place water, but it requires a lot of work to set up and regular maintenance on the emitters. Solid-set sprinkler systems cover the same area every time, but they cost a lot of money per acre and can't be moved. For smaller plots, hose reel devices work, but they aren't automated enough for activities that cover more than 500 hectares.

Where Portable Pivot Systems Hold a Structural Cost Advantage

A rotating system that can be moved around lets one machine water multiple separate rings in a row. A single towable unit can be used instead of three fixed center pivots on a 300-hectare operation that is split up into three separate 100-hectare plots. The cost of equipment drops a lot per acre. Tenant farms also gain because the system is a mobile asset that moves with the lease. This means that there is no risk of investments being stuck in permanent infrastructure.

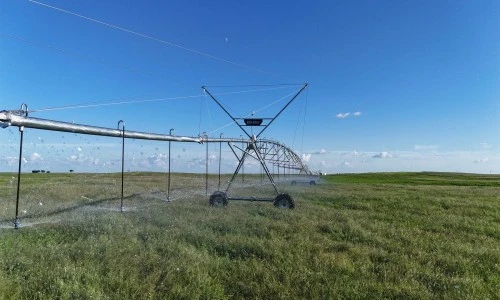

Fixed center pivots from brands like Valley, Lindsay, and Reinke's fixed center pivots are still the gold standard. Towable systems from HUAYUAN SAIT don't compete with each other on the same axis. Instead, they are aimed at users who need to be able to put systems in more than one area, cover uneven ground, or be able to allocate capital more easily. The company has more than 130 patents, including 35 invention patents and 15 international patents. These were earned through working together with China Agricultural University and with help from provincial engineering research centers.

Installation, Maintenance, and Operational Efficiency

When getting a site ready for a towable pivot, you need to look at the slope of the field, how much weight the soil can hold at the pivot point, and how wide the access roads need to be so that a tractor can pull them. Moving from one field to another takes less than 30 minutes for a trained two-person crew on flat ground. The structural frame locks firmly in both the working position and the transport position, and alignment sensors make sure the hub is oriented correctly before each watering cycle starts.

Routine Maintenance Priorities That Prevent Downtime

Regular check plans are necessary to keep operations running smoothly. It is important to keep an eye on the swivel seal assembly, the oil levels in the gearbox, the force in the wheel bearings, and the electrical links in the control panel. HUAYUAN SAIT backs this up with a full warranty for one year, low-cost maintenance and part replacement for three years, and free spare parts for life at the factory cost price. You can also get on-site installation supervision to make sure that testing is done right from the start.

Here are the features that make every HUAYUAN SAIT towable system more fuel-efficient:

• BeiDou + IoT integrated control achieves an irrigation missed rate of less than 5% and an irrigation uniformity of more than 90%. This solves the corner coverage problem that regular center pivots leave unattended. This system has a single control design that includes BeiDou tracking, smart algorithms, and monitoring of IoT devices in real time.
• Hot-dip galvanized steel over 80μm thick across all structural parts gives them corrosion protection that is perfect for warm, dry climates in Africa, deserts in the Middle East, and humid, mild climates in North America. This coating standard is better than thin-coat galvanizing and works reliably from -20°C to 60°C.
• Self-produced virgin PE pipes are made without using recycled materials. They are thicker than standard options in the industry and have been shown to have anti-aging and fracture-resistant qualities that make systems last longer than 20 years in normal use.

When procurement professionals compare Chinese-made irrigation equipment to well-known Western brands, they often worry about how long the equipment will last and how reliable it is. These engineering choices address those concerns.

Procurement Guide for B2B Clients: Buying Towable Pivots

When looking at a portable pivot supplier, you need to look closely at five things: the structural material certification, the transparency of the control system, the level of customization, the reliability of delivery, and the availability of parts after the sale. HUAYUAN SAIT makes its products directly, so there are no markups for distributors. Standardized configurations in 5", 6-5/8", and 8-5/8" pipe diameters help with big purchases and project-scale collaboration.

The F-1 Criteria Screening Approach for Vendor Selection

The procurement team can use a structured screening process, which includes setting the level of uniformity needed for irrigation (recommend >90%), making sure the galvanizing coating meets the requirements (minimum 80µm hot-dip), making sure the control system works with existing SCADA platforms, and asking for proof of NDT weld testing and hydraulic pressure test results at 150% of operating pressure. HUAYUAN SAIT offers paperwork that meets ISO 9001 standards, full export certification packages, and OEM manuals written in the buyer's language with private-label part numbers.

Future Readiness: IoT and Precision Agriculture Integration

Irrigation is moving toward full automation at the field level. The SAIT control system by HUAYUAN SAIT already has an Internet of Things (IoT) connection, remote tracking, and automatic responses to data about soil moisture. Photovoltaic power supply options meet the needs of off-grid deployment in Southeast Asia and Africa. Custom paint colors that meet RAL or Pantone standards can be given to OEM clients, along with private-label marking on tower boxes and truss assemblies. Pilot sales start at a single unit, and it takes 30 to 45 days to make a fast prototype of a specific attachment.

Conclusion

A towable pivot is more than just a way to save money; it's a strategic tool that can be used on a variety of land types, protects mobile capital investments, and allows for accurate water management in fields with uneven shapes. HUAYUAN SAIT has been making things for 20 years, has more than 130 patents, and has a supply chain that can deliver 1,800 systems a year with consistent quality. A well-designed mobile irrigation system can change what you can economically grow on your land, whether you are in charge of 500 hectares of corn in the Midwest or building infrastructure for a government food security program.

FAQ

Q1: Can towable pivots operate effectively on uneven terrain?

Yes. The drive units and hub systems are made to work in a variety of soil situations. Transport should stay on hills less than 15% to keep the structure from becoming unstable while it is being towed. As long as the pivot point is properly anchored, the system can keep uniformity coefficients above 90% even on slightly undulating land while it is watering.

Q2: What tractor horsepower is required for relocation?

For most setups, you'll need a tractor with 60–100 HP and enough hydraulic power to handle the pivot jacks and span weight. At the lower end of this range, the Easy Towable Single-Span device is lighter and can be used.

Q3: How long do these systems last?

With an 80µm+ zinc covering and hot-dip galvanized construction, the product will last longer than 20 years in normal farming circumstances. HUAYUAN SAIT promises to provide extra parts for life at the price of the plant.

Q4: Is off-grid power operation supported?

Yes. There are choices for both diesel generators on board and solar power supply types. This means that these systems can be used in places where there isn't secure grid infrastructure.

Partner with HUAYUAN SAIT — Trusted Towable Pivot Manufacturer

With over 130 patents and 20 years of experience making precision products, HUAYUAN SAIT makes towable pivots that work well on an industrial scale. Our systems come with BeiDou-guided smart control, hot-dip galvanizing up to 80µm, and full OEM customization. You can buy them directly from the factory and get help with delivery. Get in touch with our team to talk about the details of your project and get a competitive quote that is based on your acreage and crop needs. Today, email us at kevin@showyirrigation.com.
