How often to change a media filter

Most sand and multimedia beds need replacement every 3 to 7 years under normal operating conditions. However, this range shifts significantly based on source water quality, hydraulic loading, and how consistently backwashing is performed. A media filter handling high-turbidity water from open canals or recycled irrigation sources may exhaust its bed capacity in under two years. Conversely, a well-maintained unit on clean groundwater can exceed seven years. Monitoring differential pressure trends and effluent turbidity monthly gives you the clearest signal of when actual replacement is due.

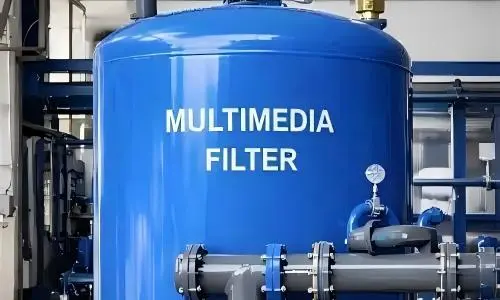

Understanding Media Filters and Their Role in Water Treatment

When you use a granular filtration vessel, the particles are caught all the way through the bed, not just on the surface. Because of this mechanism, it can hold three to five times more dirt than surface-type cartridges, which is why it is the best choice for high-flow industry and linear move irrigation systems.

Common Media Types and Their Operational Profiles

There are different jobs that silica sand, anthracite coal, garnet, and multimedia stacked mixtures can do. Sand is great at getting rid of solids that are stuck in water used for watering. Because it is lighter, anthracite sits on top of sand in dual-media configurations and deals with bigger particles first. Catalytic media go after iron and manganese that have been dissolved. Activated carbon beds can get rid of chlorine and organic matter, but their adsorptive sites wear out faster than those in mechanical media.

Compared to cartridge filters, granular beds regenerate by backwashing, which drastically lowers the cost of consumables over many years of use. This ability to grow back is very important for large-scale greenhouse owners, tree managers, and open-field row crop farmers.

Factors Influencing How Often to Change a Media Filter

There is no one schedule that works for all installations. How quickly a filtration bed breaks down beyond recovery through backwashing alone depends on a number of operational factors that work together. The nature of the source water is a primary factor for an irrigation system. When you get water from open ditches, ponds, or rivers, it has a lot more suspended solids in it than groundwater. The Water Research Foundation says that TSS levels in public water usually fall between 20 and 200 mg/L. This means that media wears down and bacterial fouling happens too quickly for a seven-year replacement cycle to work.

The hydraulic loading rate is also important. When you go over the design flux, which for sand filters is usually 5 to 10 gallons per minute per square foot, the bed gets compressed, which lowers the effective filtration depth. When undersized tanks are used at peak watering demand, their media ages faster than it should.

Key Indicators That Signal Replacement Is Overdue

You don't need a lab to tell when a bed is failing. These signs that can be seen in the field always come before proven media exhaustion:

• Differential pressure across the vessel rises above the baseline even immediately after a complete backwash cycle, indicating irreversible bed compaction or biological blinding.
• Effluent turbidity exceeds 1 NTU despite normal operating conditions, signaling TSS breakthrough.
• Backwash discharge remains heavily colored or malodorous after extended flushing duration, suggesting organic fouling or media attrition producing fines.
• Visible media loss in the backwash effluent, which may indicate underdrain damage or support gravel disturbance.

These signals should trigger an immediate bed inspection rather than another backwash attempt. Catching degradation early protects downstream equipment — particularly injection pumps, EC/pH sensors, and drip emitters in fertigation systems.

Maintenance Practices That Extend Media Life

Backwash cycles that are consistent and the right size are still the best way to keep things in good shape. Getting the bed to expand by 20–30% during backwashing moves the fines around without making the media uneven. Chemical cleaning every three months with a weak chlorine or citric acid solution gets rid of bacterial growth and mineral scaling that backwashing can't.

When and How to Replace Your Media Filter: Industry Best Practices

When chemical cleaning and backwashing are no longer able to recover normal differential pressure, replacement is the only cost-effective option for an irrigation system. Putting it off past this point could contaminate membrane systems further down the line or block fertigation injection lines with fines that have been moved around.

The replacement process is easy to follow: separate and depressurize the vessel, drain it completely, remove the used media through the manway, check for damage in the underdrain laterals and support gravel, reload with certified-grade replacement media confirmed by sieve analysis according to ASTM C136, and do a slow startup to re-stratify the bed before going back to full flow [ASTM International, 2019]. Procurement teams sourcing replacement media should request batch-specific certificates of analysis confirming uniformity coefficient, effective size, acid solubility, and attrition loss. These documents protect against substandard media that degrades within months rather than years.

Choosing the Right Media Filter and Replacement Media for Your Needs

To find the right filtration option for your needs, you need to be honest about the chemistry of the source water, the flow rate you need, and the equipment it saves further down the line. A greenhouse hydroponic system that uses a nutrient solution that is circulated needs different specs than an irrigation system that gets its water from an open reservoir.

HUAYUAN SAIT's integrated fertigation systems address this complexity directly. The Smart Head Control System for Fertigation incorporates a DN100 Centrifugal Filter paired with a DN100 Automatic Self-Cleaning Filter at 120/130 mesh filtration accuracy, eliminating the manual backwash burden entirely in high-turbidity field conditions. Here are the core advantages of this integrated filtration approach within the Smart Head Control System:

• The automatic self-cleaning filter eliminates manual intervention during peak irrigation windows, reducing labor dependency on large managed sites.
• The 11kW stainless steel pressure pump maintains stable operating pressure between 0.2 and 0.7 MPa regardless of flow variation, protecting injection accuracy.
• The fully sealed IP55 enclosure resists dust and moisture ingress, critical for open-field deployments in arid or humid climates.
• Remote operation via mobile app and 4G wireless communication means system managers can monitor filtration status and trigger cleaning cycles without being on-site.

These advantages directly resolve the most cited pain point among wholesale buyers: filter maintenance burden in dirty water conditions. The system pairs with the mobile fertigation injection unit, which delivers 60–1000 L/h per channel (adjustable), controlled through an ARM9-based industrial touchscreen rated for EMC/ESD compliance. Together, they form a precision agriculture solution that moves beyond basic filtration into fully automated water-fertilizer management.

Conclusion

Reactively replacing granular filter media—waiting until the system breaks down to make the change—causes more damage in the long run than proactive replacement ever would for an irrigation system. By keeping an eye on changes in differential pressure, effluent turbidity, and backwash performance every month, you can make a replacement calendar that is based on facts instead of guesswork. For most farming and manufacturing uses, sand and video beds should be inspected every three years and replaced every five to seven years. Surface water applications with a lot of turbidity need to be looked at earlier. HUAYUAN SAIT's integrated systems show that using the right filtration specification along with smart automation lowers the overall maintenance need while increasing the system's useful life.

FAQ

1. How do I know if cleaning will work instead of full media replacement?

It's clean enough if the pressure difference goes back to normal after a full backwash and chemical soak. If the pressure only partly or not at all returns, the media bed has reached its structural limit for a linear move irrigation system and requires replacement.

2. Does water temperature affect how often I need to change filter media?

Yes. Since colder water is denser, it needs less backwash flow to properly expand the bed. Backwash that isn't fully expanded in the winter lets fines build up, which presses down on the bed faster and shortens the useful media life.

3. Can a standard sand filter remove fertilizer residues from recycled irrigation water?

Mechanical granular media remove suspended solids and turbidity only. Dissolved nutrient salts pass through untreated. Activated carbon or ion-exchange media is required for dissolved organics or specific ionic removal.

4. What happens if I delay media replacement too long?

Fines that have been moved from a degraded bed move downstream and block drip emitters, clog EC/pH sensors, and damage injection pump seals — repairs that cost significantly more than timely media replacement.

5. How does automatic self-cleaning filtration reduce replacement frequency?

Continuous or triggered self-cleaning cycles prevent surface blinding that accelerates media compaction. By removing accumulated solids before they penetrate deeply into the bed, automatic systems extend the interval between full media changes by maintaining consistent hydraulic performance.

Get the Right Media Filter Solution from HUAYUAN SAIT

HUAYUAN SAIT delivers proven media filter supplier expertise for irrigation systems built on 20 years of manufacturing experience and 130+ patents. Our integrated fertigation systems ship within one week, backed by a one-year full warranty and three-year low-cost maintenance support. Contact our technical team at kevin@showyirrigation.com to request a customized quote. OEM and ODM configurations are fully supported.

References

1. American Water Works Association (AWWA). (2022). Manual of Water Supply Practices M37: Operational Control of Coagulation and Filtration Processes.

2. Water Research Foundation. (2020). Surface Water Treatment Rule Compliance and Turbidity Control in Granular Media Filtration Systems. Water Research Foundation.

3. NSF International. (2021). NSF/ANSI 61: Drinking Water System Components – Health Effects. NSF International.

4. ASTM International. (2019). ASTM C136/C136M-19: Standard Test Method for Sieve Analysis of Fine and Coarse Aggregates.

5. Crittenden, J. C., Trussell, R. R., Hand, D. W., Howe, K. J., & Tchobanoglous, G. (2012). MWH's Water Treatment: Principles and Design.

6. Tchobanoglous, G., Burton, F. L., & Stensel, H. D. (2014). Wastewater Engineering: Treatment and Resource Recovery (5th ed.). McGraw-Hill Education.
