Skid Pivot: Everything You Need to Know

A skid pivot is a precision-engineered rotational anchor that allows large-span irrigation structures to sweep across agricultural fields while maintaining structural integrity and fluid continuity. In modern center-pivot irrigation, the skid-mounted pivot assembly serves as the operational backbone — distributing mechanical load across multiple spans, managing torsional stress on uneven terrain, and enabling automated, large-scale water delivery. For commercial farm operators, government procurement agencies, and EPC contractors sourcing mechanized irrigation infrastructure, understanding how a skid pivot system is built, configured, and maintained directly impacts total cost of ownership and long-term field productivity.

Understanding Skid Pivot: Features and Benefits

What Makes a Skid Pivot System Different

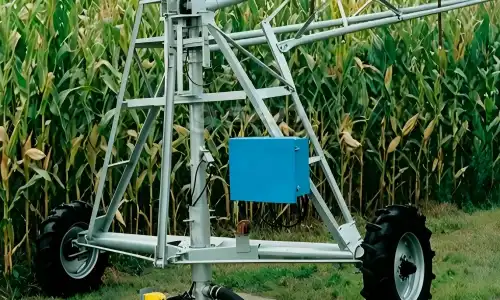

The HUAYUAN SAIT skid-mounted center pivot is made of hot-dip galvanized steel all the way through, with a zinc covering that is at least 80µm thick. This layer of protection works much better than regular electro-galvanized or thin-coat options, especially in places with salty soils, high humidity, or desert wear and tear. The system was designed to last longer than 20 years, which is backed up by the 20 years of production knowledge of the manufacturing team and proven by operations in Africa, Central Asia, and the Americas.

Here are the most important structural and efficiency benefits of this pivot system:

• Profile flexibility: Standard, low, high, and ultra-high profile configurations are available, with span heights of 2.1m, 2.9m, 3.8m, and 4.5m — allowing deployment across row crops, sugar cane, and high-clearance biofuel plantations without structural compromise.
• Span configuration range: Six span lengths from 37.5m to 66.5m, combined with overhang lengths up to 25m, enable coverage of 4 to 200 hectares per irrigation cycle and a maximum system radius of 800 meters.
• Pipeline options: Main pipe diameters of 5" (127mm), 6-5/8" (168mm), and 8-5/8" (219mm) accommodate varying flow rate demands across different field scales.
• Truss engineering: 20mm and 22mm truss rods, combined with calibrated angle geometry, distribute load evenly across each span — reducing stress concentration at joint points that would otherwise accelerate fatigue failure.

These structural benefits directly lead to shorter maintenance cycles, less unplanned downtime, and more accurate planning of capital expenditures. These are the things that procurement managers at large farming operations always put ahead of the initial unit price.

SAIT Smart Control and Irrigation Precision

The SAIT Smart Control System combines BeiDou navigation, Internet of Things (IoT) sensors, and big data models to provide accurate Variable Rate Irrigation that is set to the way soil absorbs water. It evenly waters more than 90% of the field, and only 5% of the corners of the field don't get watered. These are numbers that regular analog-controlled pivots can't match, but a skid-mounted pivot with the SAIT Smart Control System can achieve comparable performance. A single platform lets you access remote schedules, zone-based applications, and combined water and fertilizer management. This makes large-scale operations much more efficient by cutting down on the amount of work that needs to be done by hand.

How Skid Pivot Works: Setup and Usage Guide

Installation and Commissioning Process

The engineering team at HUAYUAN SAIT helps with installation and gives expert advice right there on the job site. The structural inspection that happens when the machine is delivered checks for galvanizing integrity, truss rod torque specs, gearmotor alignment (25.5:1 at 1.5hp or 40:1 at 0.75hp depending on the slope of the ground), and wheel gearbox engagement at 50:1 or 52:1 ratios. Before the SAIT control panel is set up and adjusted to field-specific soil data, armored UL-listed wires are routed and protected.

Wheel tire choices include 11.2-24, 14.8-24, or 16.9-24, with or without tubes. They are chosen based on how much weight the dirt can hold and what the ground is likely to be like at this time of year. The outlet spacing can be 1.9m or 2.9m, depending on the watering package that was chosen for the field plan.

Operational Best Practices and Maintenance

The major scheduled maintenance jobs are to lubricate the drive parts every three months and check the pivot seals and pin wear once a year. The self-developed virgin PE pipes used throughout the system are thicker than standard alternatives in the industry, less likely to break, and don't contain any recycled material. This means that they don't have a common failure point like cheaper competitor designs. The water turbine 4-speed gearbox has specially made gears that don't wear down easily. These gears keep the speed stable even when the pressure changes. This means that the gearbox doesn't need to be serviced as often and can spray farther at the same recovery speed.

Skid Pivot vs. Competitors: Making the Right Choice

In order to choose a skid pivot provider, purchasing teams usually compare them to Valley, Lindsay, and Reinke on four factors: total cost of ownership, technical specification details, customization capabilities, and after-sales infrastructure.

The way HUAYUAN SAIT stands out is not just because of its low prices, but also because of its unique engineering. The company has more than 130 patents, including 35 invention patents and 15 international patents. These patents were created by working with China Agricultural University and using the facilities of the provincial engineering research center. This level of research and development makes it possible for us to offer things that catalog-only sellers can't: corner arm systems that make it 15% easier to water square or irregular fields, custom span configurations for non-standard layouts, and SAIT software interfaces that work with third-party SCADA platforms under our own brand name.

People who have tried out one to three units before placing larger orders always say that the 80µm+ hot-dip galvanizing clearly works better than competing units in similar field conditions after two to three growing seasons. The operating temperature range of -20°C to 60°C makes it possible to use the equipment reliably in both tropical African farmlands and continental Central Asia, without having to make different versions of the equipment for each area.

Procurement Guide: Purchasing Skid Pivot for Your Business

Order Volumes, Lead Times, and Logistics

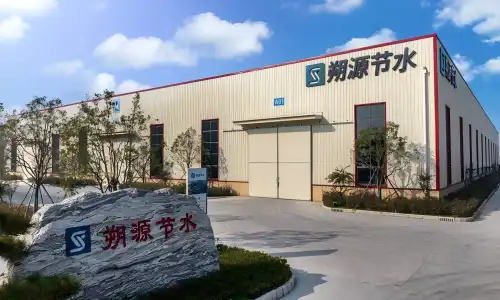

HUAYUAN SAIT can handle trial orders for custom setups starting with a single unit, and it can finish fast prototyping of specialized attachments in 30 to 45 days. Within 60 to 90 days, standard market setups of 5 to 20 units are filled. The factory is near Xuzhou and has direct access to the Huaihai Economic Zone's hub-level transportation network. This is an advantage that lowers the costs of export operations and speeds up shipping times compared to factories in more isolated areas of the country.

The annual production capacity is 1,800 pivot and linear systems, which makes sure that delivery times are always met and there is no risk of supply chain breakdown.

Warranty, After-Sales, and Parts Supply

After the sale of a skid-mounted pivot, there is installation service, a full guarantee for one year, low-cost upkeep and part replacement for three years, and a lifelong supply of spare parts at the original cost price. For distributors and EPC contractors, this gets rid of the service gap after the project is finished, which can be bad for their reputations when they use third-party equipment in agricultural programs that are funded by the government or multilateral organizations.

We offer full OEM and ODM services, such as localizing the language on the control panel, matching RAL and Pantone colors, private-labeling the towers, and making custom part-number paperwork for dealer training programs.

Skid Pivot Brand and Support: Building Trust with Your Supplier

HUAYUAN SAIT uses a manufacturing system that is backed by ISO 9001 certification, ASABE standards compliance, and full export paperwork for buying things in other countries. The engineering team plans the layout of farmland, helps with installation, and provides full-cycle technical service. This is not an extra service that is offered on top of every project.

The company's research and development spending can be seen by its involvement in important national R&D projects, the creation of platforms with well-known agricultural universities, and a patent portfolio that shows real process and product innovation rather than gradual adaptation. This institutional authority is a big deal for wholesalers in Africa, the CIS, and South America who need a manufacturer that can back up technical reports, government bidding documents, and long-term guarantees on spare parts.

Conclusion

A well-thought-out skid pivot system is an investment that will last for 20 years, not just a one-time buy. With its precise structural engineering, SAIT smart control automation, and full after-sales support, the HUAYUAN SAIT center pivot platform meets the real purchasing needs of big farm owners, government agencies, and foreign distributors. The system has a range of customizable configurations that can span between 37.5m and 66.5m, with profile heights ranging from 2.1m to 4.5m. It saves more than 70% of water compared to flood irrigation baselines, and its field performance can be measured. It is backed by 20 years of manufacturing discipline.

FAQ

Q1: What maintenance does a skid pivot system require?

Drive and gearbox parts must be oiled every three months, and pivot seals, truss rod tightness, and pivot pin wear must be checked once a year. HUAYUAN SAIT's low-cost maintenance program lasts for three years and includes regular repairs and replacement parts at a lower cost. The program also includes a lifetime supply of spare parts at factory prices, which ensures long-term operation.

Q2: Can the pivot system handle irregular or square field layouts?

Yes. The corner arm system is designed to work with square and irregular field shapes. It increases the area that can be watered by 15% compared to normal circular coverage. The in-house engineering team at HUAYUAN SAIT can set up spans that are specific to each site.

Q3: What customization options are available for OEM buyers?

It's possible to have custom span lengths, profile heights, sprinkler packages, localized control panels, private-label tower and truss marking, color matching to RAL or Pantone, and SCADA integration. Custom configurations can start with pilot orders of just one unit.

Q4: How does the SAIT control system compare to established brands?

Through the use of BeiDou navigation and big data Variable Rate Irrigation modeling, the SAIT system achieves an irrigation uniformity rate of above 90% and a missed-irrigation rate in corners of less than 5%. These are achievement standards that can be measured, not marketing boasts.

Partner with HUAYUAN SAIT — Trusted Skid Pivot Manufacturer for Global Farm Operations

HUAYUAN SAIT makes engineered center pivot systems that business farmers and project workers can trust to do their jobs. With more than 130 patents, 20 years of manufacturing experience, flexible OEM capabilities, a 1-year full warranty, and lifelong parts support, every unit is an investment in field productivity that will pay off in the long run. Get in touch with them directly to look at options, ask for a test unit, or talk about bulk skid pivot source price that fits the size of your project. To start your question right away, email our team at kevin@showyirrigation.com.

References

1. Irrigation Science — Principles of Variable Rate Irrigation in Center-Pivot Systems, 2021

2. Transactions of the ASABE — Structural Load Distribution in Long-Span Center-Pivot Irrigation Systems, 2020

3. Agricultural Water Management — Water Use Efficiency Benchmarks for Mechanized Irrigation in Large-Scale Row Crop Production, 2022

4. Journal of Irrigation and Drainage Engineering (ASCE) — Hot-Dip Galvanization Standards and Corrosion Resistance Performance in Agricultural Steel Structures, 2019

5. Biosystems Engineering — Smart Control Integration in Precision Irrigation: IoT and Remote Sensing Applications, 2023

6. Applied Engineering in Agriculture — Comparative Analysis of Center-Pivot Irrigation Performance Across Arid and Semi-Arid Environments, 2021
